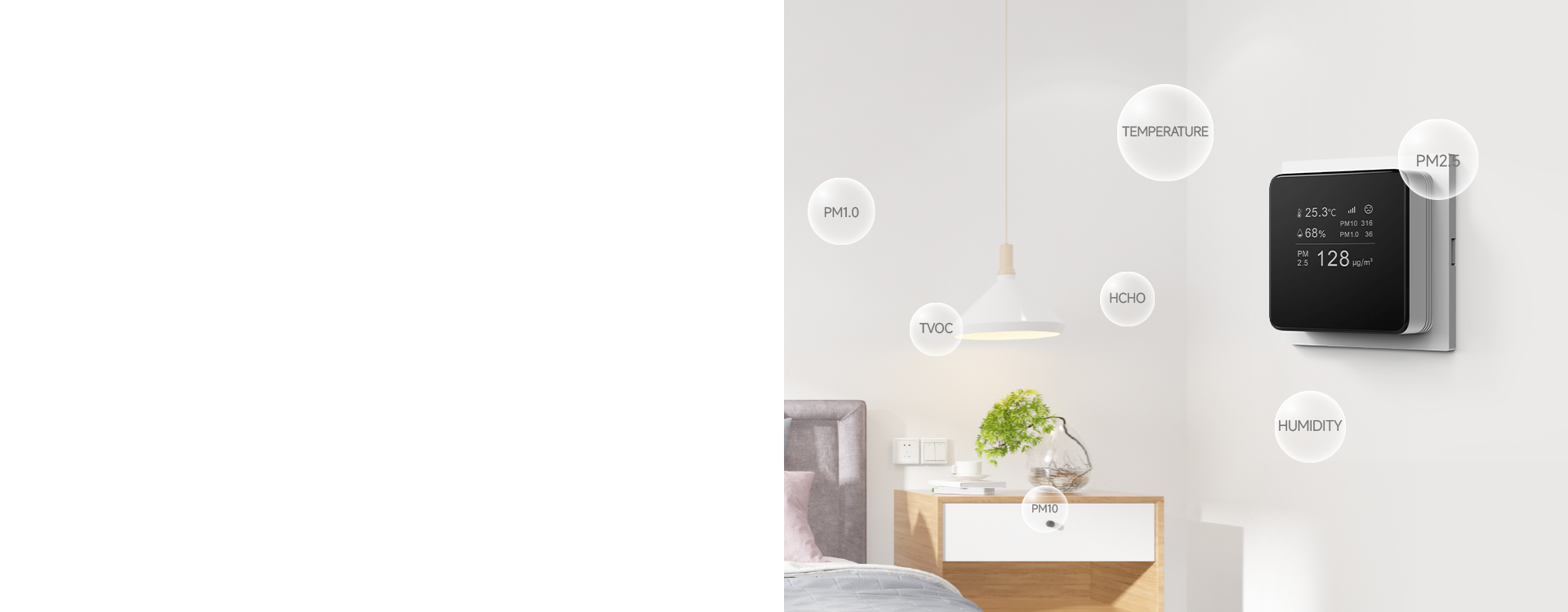

9-in-1 Integrated Air Quality Monitoring System
Integrates temperature, humidity, PM2.5,
formaldehyde (HCHO), CO₂, VOC and illuminance detection.
it offers comprehensive health protection for you
and your loved ones.

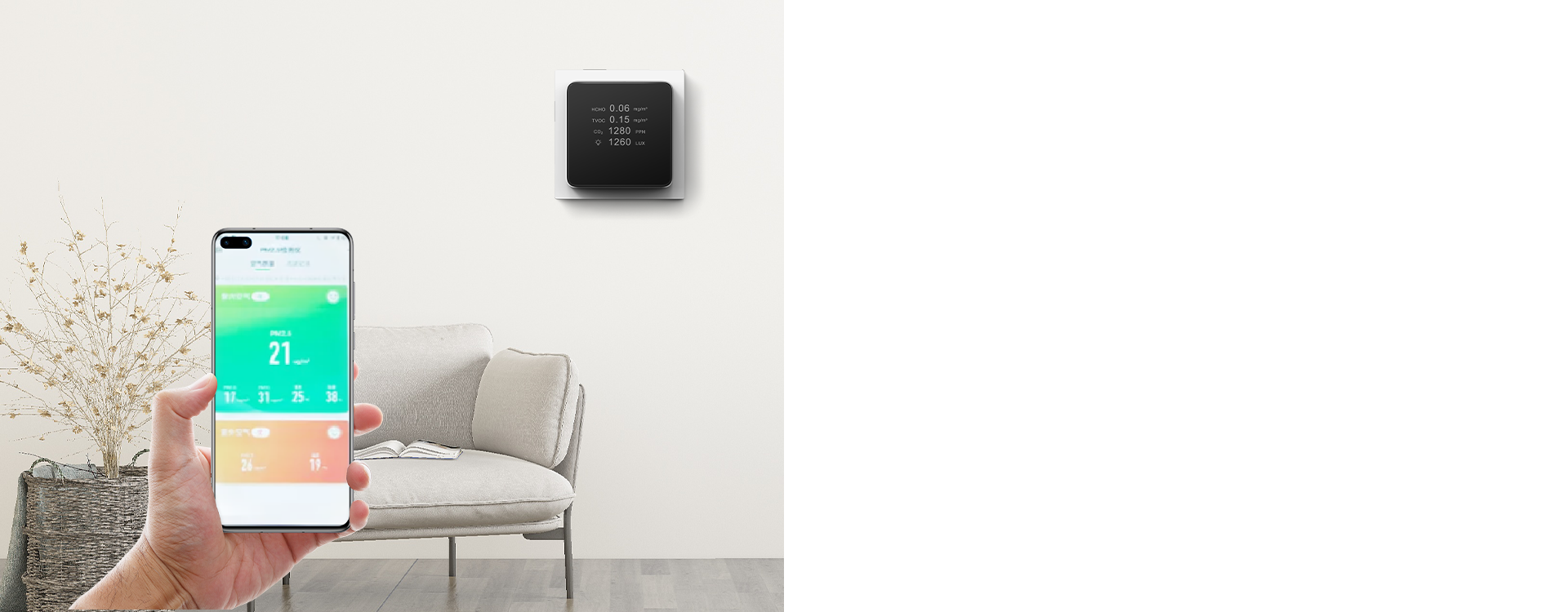

Real-Time Phone Monitoring Check Air Quality Anytime
Supports ZigBee for quick setup.
View real-time air quality data remotely via the mobile app,
anytime and anywhere.

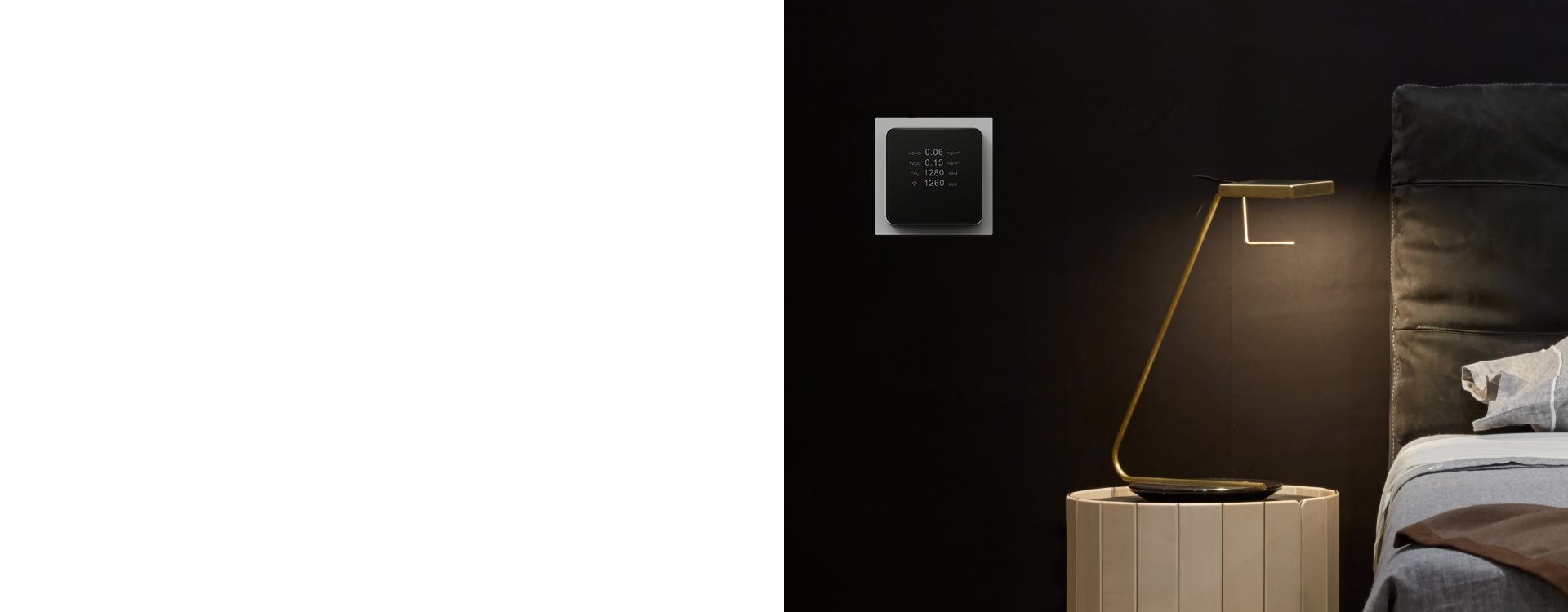

Light Sensing for Your Ideal Ambience
Features an illuminance sensor that responds to ambient light changes. Automatically closes smart curtains when too bright, and turns on preset lights when too dark, keeping your space perfectly lit around the clock.
Superior Craftsmanship Reliable Safety
17 test categories, 700+ test cases Strict tests ensure stable and reliable performance
Technical Specifications
Wireless Type | Zigbee / Wi-Fi |
Transmission Frequency | 2.4 GHz |
Communication Range | 80 metres (line of sight) |
Operating Voltage | AC 100 V–240 V |
PM1.0/PM2.5/PM10 Range | 0–999 μg/m³ |
Temperature Range | –10 ° C to +55 ° C |
Humidity Range | 0–99% RH (No condensation) |
Formaldehyde Range | 0–1 mg/m³ |
Carbon Dioxide Range | 400–5000 ppm |
TVOC Range | 0–6 mg/m³ |
Illuminance | 0–1000 lux |
Display | FTF screen |
Installation Method | Flush-mounted wall bracket (86 mm box) |
Product Dimensions | 86×86×59 mm |
